High-Definition Video on the PC

Now that HD-DVD and Blu-Ray are starting to enter the market in earnest, I thought I'd revisit HD video playback on the PC. I'm seriously considering buying one of the $199 Xbox 360 HD-DVD kits and retrofitting it into my Home Theater PC .

I'll start by comparing three clips from the Microsoft Windows Media High Definition Showcase page. It's a tad out of date now-- most of these sample high-definition clips were mastered in late 2003 or early 2004, long before HD-DVD or Blu-Ray. But the bitrates and sizes are still representative.

Most of the clips had similar performance characteristics, so I chose one clip from each category.

T2 Promo
720p
T2 Promo
1080p
Step Into Liquid Promo
1080p
Resolution 1280 x 720 1440 x 1080 1440 x 1080
Bitrate 6.93 Mbps 8.44 Mbps 8.44 Mbps
Audio Codec WMA 9 Pro
5.1 channel
384 Kbps
WMA 9 Pro
5.1 channel
384 Kbps
WMA 9 Pro
2 channel
384 Kbps
Video Codec WMA 9 Pro WMA 9 Pro WMA 9 Pro

Note that I included the Step Into Liquid promo because it's the only clip on the WMV HD Showcase page that requires an abnormally large amount of CPU power to decode. I'm still not sure exactly why. The resolution is the same, and the bitrate looks comparable. You'll also note that Microsoft has an odd definition of 1080p. The official television resolutions break down as follows:

Pixels per frame
480i 704 x 480 interlaced 168,960
480p 704 x 480 progressive 337,920
720p 1280 x 720 progressive 921,600
1080i 1920 x 1080 interlaced 1,036,800
1080p 1920 x 1080 progressive 2,073,600

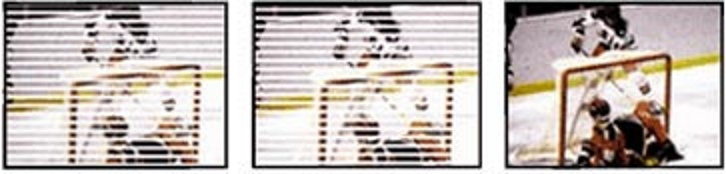

The official definition of 1080p is 1920x1080, so I'm not sure what Microsoft was thinking there. Interlaced means resolution is effectively halved vertically in time; frames alternate between odd and even lines each cycle.


Interlaced video modes are generally considered inferior to progressive video modes, and should only be used if you have no way to enable progressive modes. Interlacing has a lot of problems and should be avoided whenever possible.

I compared CPU usage in Task Manager during full-screen playback of each clip in Windows Media Player 11 on a few systems I have around the house. Note that DirectX Video Acceleration was enabled in each case.

Pentium-M 1.75 GHz Athlon 64 1.8 GHz Core Duo 2.0 GHz
T2 Promo
720p
75% CPU, perfect
50% CPU, perfect
25% CPU, perfect
T2 Promo
1080p
85% CPU, perfect
75% CPU, perfect
33% CPU, perfect
Step Into Liquid Promo
1080p
100% CPU, unwatchably choppy
95% CPU, very choppy
40% CPU, perfect

I have a sneaking suspicion the reason Microsoft redefined "1080p" as 1440x1080 had to do with performance. I doubt any PC system could play a true 1080p clip at the time these clips were mastered.

It clearly requires a lot of CPU horespower to render high definition video. Driving 1920x1080 requires a lot of grunt-- both in terms of pixel-pushing video bandwidth, and also in terms of CPU power for the advanced encoding used to keep the file size down on these massive resolutions. Dual core does this especially well, although it appears to do so by brute force load sharing rather than any special multiprocessor optimizations in the decoder. The mainstream PC is only now catching up to the performance required to watch high definition video.

All the video samples I cited are in Windows Media format. Windows Media, by all accounts, offers a very good next generation encoder, but it isn't the only encoder on the block. Both Blu-Ray and HD-DVD allow three different encoders:

Woe to the poor consumer who buys a HD-DVD or Blu-Ray disc encoded with the ancient MPEG-2 encoder. It'll look awful and take up a lot more room than it should. H.264 and MVC-1, however, are truly next generation encoders. They look better in less space, but they also require a lot more CPU power to decode. At least we have a few legitimate uses left for the ridiculous amounts of CPU power we've inherited over the years.

If you own a relatively new video card, it is possible to offload some of the video decoding chores from your CPU to your video card's GPU. But the configuration, drivers, and software necessary to achieve this acceleration is daunting. Anandtech found that, when properly configured, the latest video cards can significantly reduce the H.264 decoding burden on the CPU; ATI reduced it by half, and Nvidia reduced it by a fifth. But good luck getting everything set up in Windows XP. Here's hoping Windows Vista and DirectX Video Acceleration 2.0 enables hardware accelerated video decoding out of the box.
