Building a PC, Part V: Upgrading

Last summer I posted a four part series on building your own PC:



My personal system is basically identical to that build, though it predates it by about six months. The only significant difference is the substitution of the Core 2 Duo E6600 CPU.

In my opinion, quad-core CPUs are still a waste of electricity unless you're putting them in a server. Four cores on the desktop is great for bragging rights and mathematical superiority (yep, 4 > 2), but those four cores provide almost no benchmarkable improvement in the type of applications most people use. Including software development tools. (Update: This paragraph was more controversial than intended. See Should All Developers Have Manycore CPUs? for a clarification.)


My original advice stands: for the vast majority of users, the fastest possible dual-core CPU remains the best choice. I overclocked my E6600 CPU from 2.4 Ghz to 3.2 Ghz, instantly increasing the value of the processor by about 800 bucks.

Beyond overclocking, the economy of building your own PC also lies in upgrading it in pieces and parts to keep it up to date. Once you've taught yourself to build a PC, swapping parts out is easy. That's an option you almost never have on laptops, and rarely on commercial desktops.

It's been almost a year and a half since I made any significant change to my PC build. That's an eternity in computer dog years. I was developing a serious itch to upgrade something -- anything -- on my PC. I did a bit of research, and I was surprised to find that the P965 chipset on my Asus P5B Deluxe motherboard supports the latest and greatest Intel CPUs. This is a pleasant surprise indeed; Intel and AMD change the pinouts and sockets of their CPUs quite regularly. A simple CPU upgrade, more often than not, forces a complete motherboard and memory upgrade. But not in this case!

So here's what I did:

  1. flash the BIOS* on my motherboard to the latest version, which supports the newest CPUs

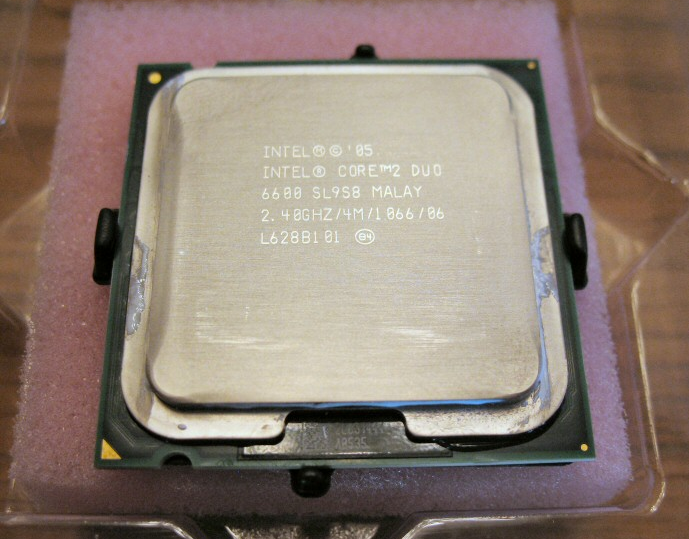

  2. remove the old and busted CPU (Core 2 Duo E6600, 2.4 GHz, 4 MB L2)
  3. drop in the new hotness CPU (Core 2 Duo E8500, 3.16 GHz, 6 MB L2)
  4. Manually adjust FSB speed, memory voltage and CPU voltage

This chip is an outstanding overclocker. It's almost a no-brainer. The tubes are full of documented cases of this chip reaching 4.5 GHz and sometimes higher. I was fairly content with my effortless 4 GHz overclock:

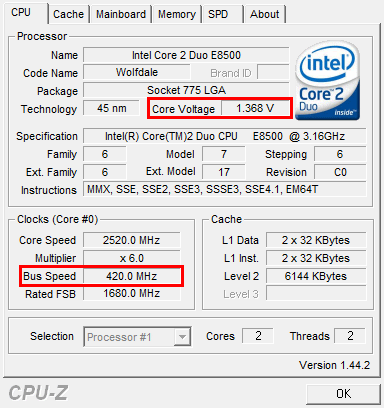

cpu-z E8500 @ 4 GHz

If you're wondering why CPU-Z says this is a 2520 MHz CPU instead of the 4000 MHz you'd expect, that's because the CPU is idle. All modern CPUs clock down at idle to reduce power draw. If you run something CPU intensive, you'll see the CPU speed dynamically change in CPU-Z, as illustrated by this animated GIF:

CPU-Z SpeedStep animation

This power savings is achieved by dropping the CPU multiplier from its default of 9.5 down to 6.0. If we do a little math, it's easy to infer the relationship between FSB (front side bus), CPU multiplier, and actual CPU speed:



315 MHz 6.0x 1890 MHz
333 MHz 9.5x 3163 MHz
420 MHz 6.0x 2520 MHz
420 MHz 9.5x 3990 MHz



Overclocking the CPU is simple if you can stumble your way through a few basic BIOS screens. The default voltage on this E8500 is 1.128 volts. By juicing the CPU voltage up to 1.36 volts, and setting the front side bus (FSB) to 420 MHz, we can hit the magical 4 GHz number. All we need to do is a little unit testingburn-in torture testing, and we can confirm that it's stable.

But you might wonder -- does this overclocking stuff really justify the hassle? Is going from 3.0 GHz to 4.0 GHz really worth it in terms of actual performance and not just bragging rights?

I'm glad you asked!

I clocked my E8500 to 3.0 GHz / 315 FSB and 4.0 GHz / 420 FSB and ran a few quick SunSpider JavaScript benchmarks. You may remember this great little benchmark from The Great Browser JavaScript Showdown. Here's what I found:

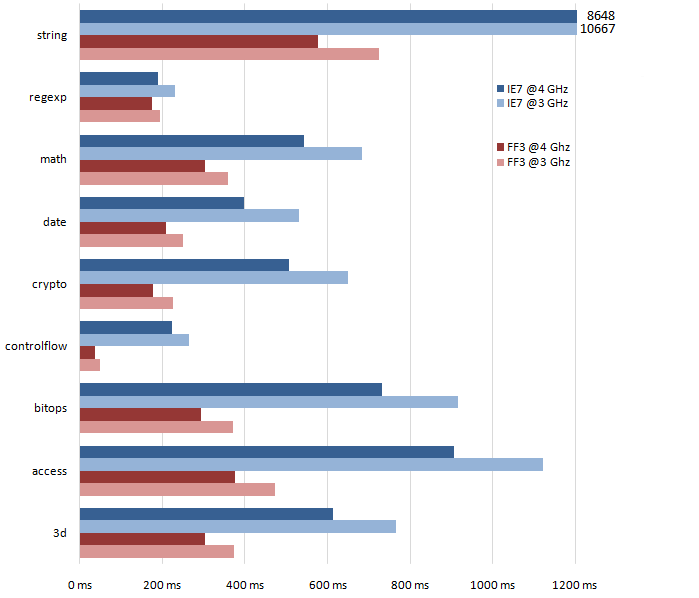

JavaScript Sunspider CPU Performance from 3 GHz to 4 GHz

And the overall benchmark result in table form:



  3 GHz 4 GHz
Internet Explorer 7 SP1 15,824 ms 12,748 ms 19% faster
Firefox 3.0 Beta 5 3,018 ms 2,450 ms 19% faster



That's a consistent 19% performance improvement in an interpreted browser language for a 33% increase in raw CPU clock speed. Not too shabby. It's actually more than I expected. The real speed difference between an E6600 and E8500 would be (slightly) greater than the pure clock speed indicates, due to the architectural improvements and larger L2 cache in the E8500. There also might be other languages and apps that scale more linearly with that 33% CPU clock speed increase.

Compare the result of going from 3 GHz to 4 GHz with adding another two cores, which would produce exactly zero improvement in your JavaScript benchmarks. Most apps are barely multithreaded, much less capable of taking advantage of all four cores. Having four CPU cores won't help you much when they're all poking along at a leisurely 2 GHz.

So if you followed our original PC build plan, or if you're planning to build your own PC -- don't forget to factor upgrading into your system's lifespan! These builds are eminently upgradeable. Sometimes you'll get lucky and have knockout upgrade options like the E8500: a 4 GHz (almost) guaranteed drop-in CPU replacement for under 300 bucks.

* I am simplifying a little because I don't want to scare anyone. In the interests of full disclosure, here's the story. The ASUS Windows x64 BIOS flash program crashed while updating the motherboard BIOS. I can't quite describe the chill that went down my spine as I watched this happen. Any failure during a BIOS flash is irrevocable and permanent, the very definition of "bricking". To be fair, this is literally the first time I've ever bricked anything in at least 10 years of regular yearly BIOS flashing. I had to buy another motherboard and initiate a RMA on my original, newly BIOS-free motherboard. Let this be a lesson to you, kids: don't trust Windows software developers! Always update the BIOS from a boot CD or from within the BIOS itself using a USB key!
